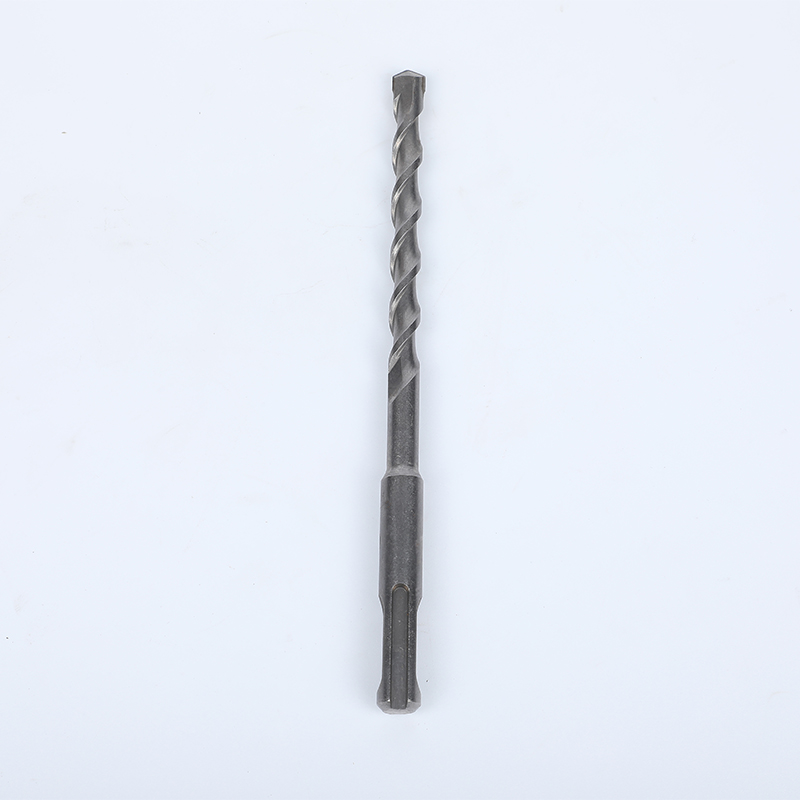

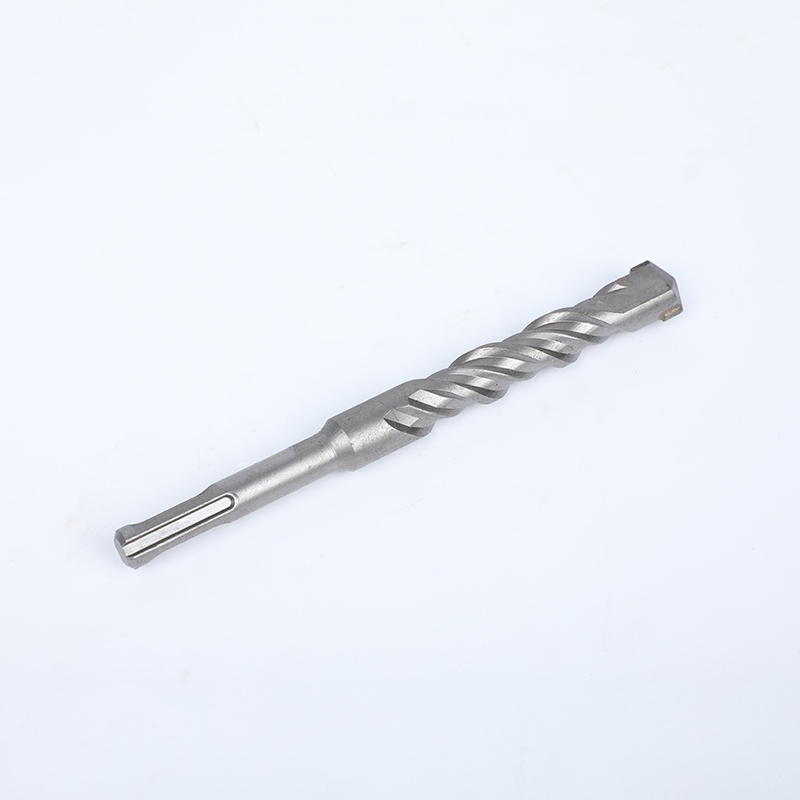

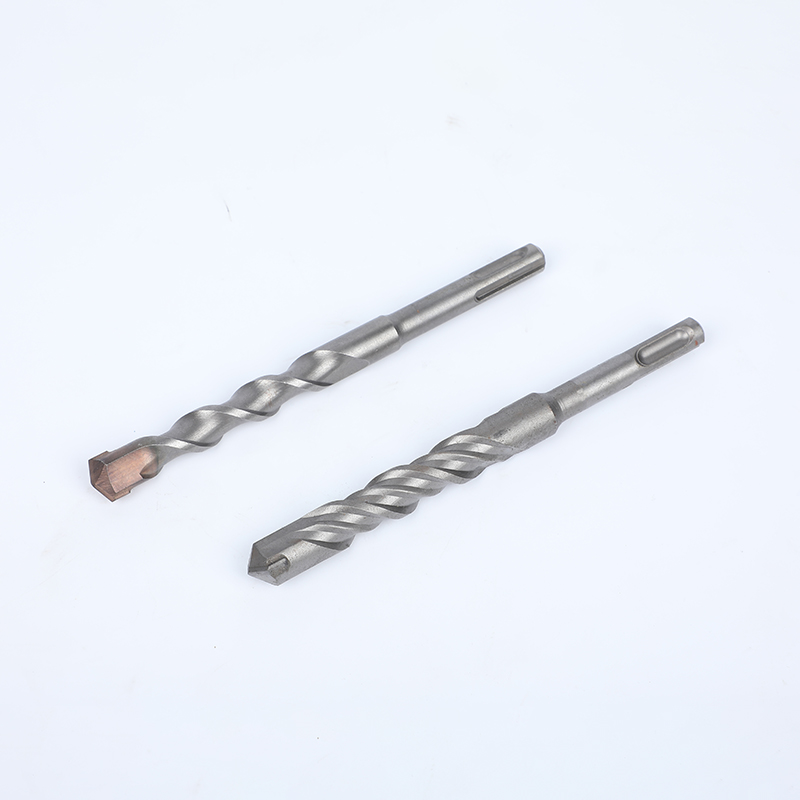

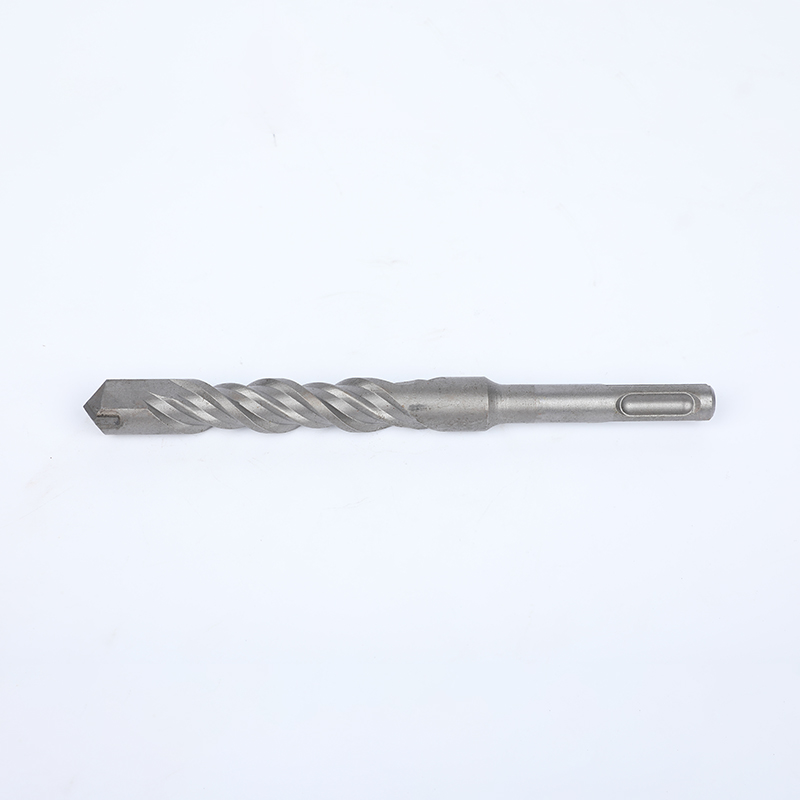

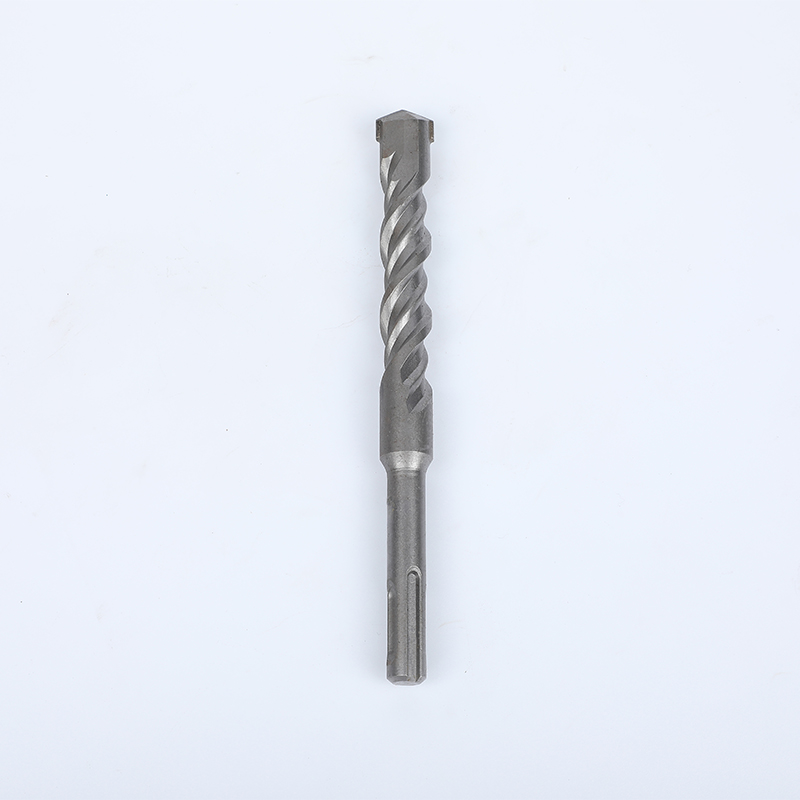

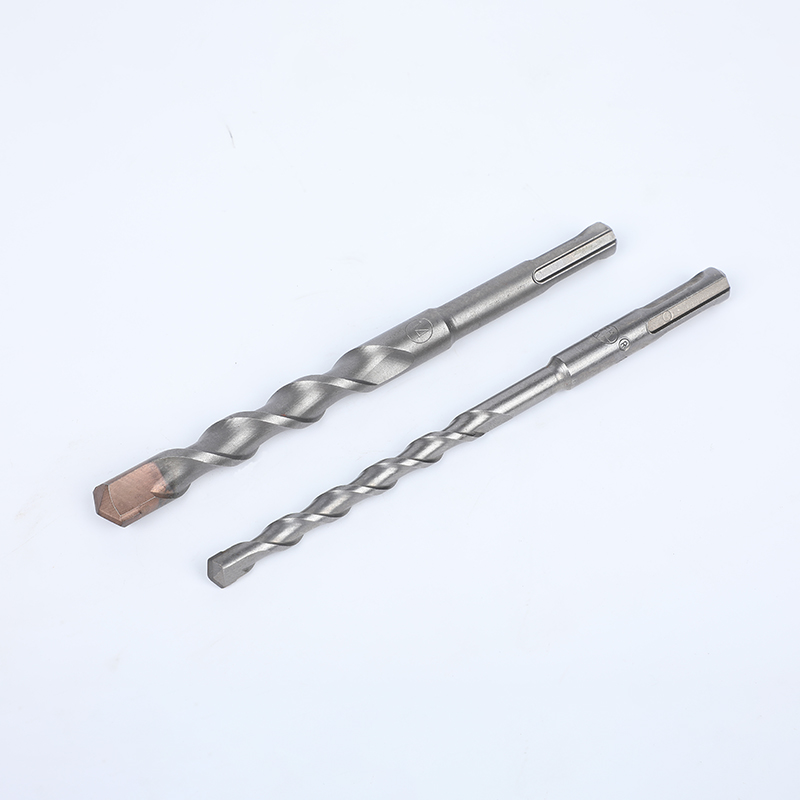

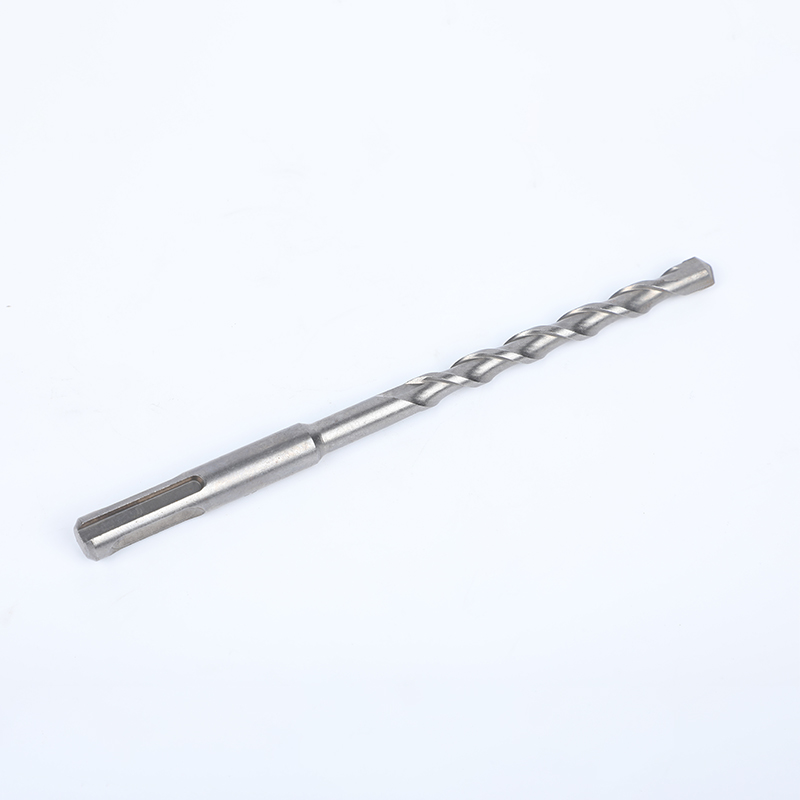

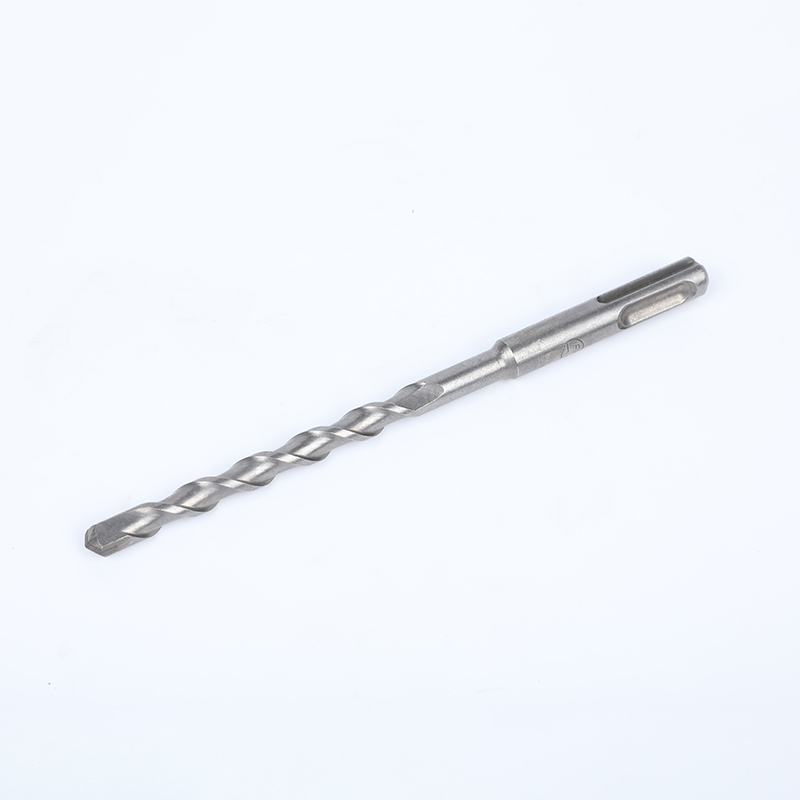

Wholesale Price SDS Plus Standard Flute Hammer Drill Bit Fast Drilling

Product Detail:

1. 2-cutter tip design prevents seizing while drilling in reinforced concrete.

2. Crushes faster than standard masonry drill bits and as a 2× life rating compared to standard masonry drill bits.

3. Reinforced crushing tips minimize vibration and protect carbide breakage.

Send email to us

We thinks what customers think, the urgency of urgency to act in the interests of a customer position of principle, allowing for better quality, lower processing costs, prices are more reasonable, won the new and old customers the support and affirmation for Wholesale Price SDS Plus Standard Flute Hammer Drill Bit Fast Drilling, We sincerely expect exchange and cooperation along with you. Let us move forward hand in hand and accomplish win-win situation.
We thinks what customers think, the urgency of urgency to act in the interests of a customer position of principle, allowing for better quality, lower processing costs, prices are more reasonable, won the new and old customers the support and affirmation for China Concrete Drill Bit and Morse Taper, Fast Drilling, Due to the stability of our products, timely supply and our sincere service, we are able to sell our products not only over the domestic market, but also exported to countries and regions, including the Middle East, Asia, Europe and other countries and regions. At the same time, we also undertake OEM and ODM orders. We will do our best to serve your company, and establish a successful and friendly cooperation with you.

Application

● Drilling holes for concrete, stone, rock or brick.

● Drilling holes for post-installed rebar connections.

● Drilling drainage holes for drying out buildings.

● Drilling through-holes when you need to have an installation of pipes and cables.

● Drilling holes for screw installation.

Technical Data

● Material: 40CR+YG8C.

● Head Material Composition: Tungsten Carbide.

● Production Process: High temperature quenching, Surface sandblasting, Manual welding.

● Connection End: SDS PLUS

● Flute or Slot: Single/ Double

● Type of Tip: Single Cutter

● Number of Cutting Edges: 2

● Overall Length: 120-1200 mm (Normal length) – It can be customized.

● Diameter: 6-40 mm (Normal size) – It can be customized.

Product Advantages

1.Long Life- comprised of hardened tungsten carbide teeth and high speed forged steel body, this bit is designed for long lasting performance.

2.Strong Core- SDS Plus bits have tapered core for bit strength and maximum durability, especially when drilling deep holes.

3.Aggressive Material Removal- special flute design with variable helix pattern of JS-tools’ SDS hammer drill bits allow for efficient debrisremoval.

4.Clean, Round Holes- two sharp cutting edges of true holes.

5.Wear Mark Indicator- for accurate diameter of holes.

Size

Dia.	Overall Length
14, 16	120
6, 8, 9, 10, 12, 14, 16	150
6, 8, 10, 12, 14, 16, 18, 20, 22, 25	200
8, 10, 12, 14, 16, 18, 20, 22, 25	280
10	300
8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32, 35, 38	350
8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32, 35, 38	450
8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32, 35, 38	500
8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32, 35, 38	600
10, 12, 14, 16, 18, 20, 22, 25, 26, 28, 30, 32, 35, 38	700
10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32, 35, 38	800
8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32, 35, 38	1000
8, 10, 12, 14, 16, 18, 20, 22, 25	1200

*1) unit: mm

*2) other sizes free to consult

Packing

1 x Drill Bit / Plastic Tube

Packing can also be customized according to your requirements. Welcome to contact.

Instructions for Use

1. When drilling, keep the bit perpendicular to the processed object to avoid damaging the bit and yourself.

2. In the unlikely event of breakage, the drill bit will be considered for replacement as long as the wear mark on the helix is still visible. Timely changes will make your job easier.

3. For use with SDS Plus drills.

Concrete	Do not use lithium electric drill less than 6V	Frequently used
Reinforced Concrete	Please do not hit the steel bar in the process of use	Frequently used
Hard Stone	Please add water to use	Generally used
Normal Stone	Need to use impact function	Frequently used
Hard Rock	Need to add liquid cooling	Generally used
Normal Rock	Need to use impact function	Frequently used
Masonry	Can be shocked or not shocked,Moderate force during function drilling	Frequently used
Usual Masonry	Moderate force without impact function	Frequently used
